Shed Door Security Bolts Kit

Shed Door Beef Up Kit

The Pragmasis Beef-Up Kit is incredibly simple but solves a very common problem - shed doors being fitted with hinges that are only held in place with wood screws. Ditto a hasp & staple on the other side of the door, where it is usually fixed with just wood screws.

Wood screws can be pulled out very easily!

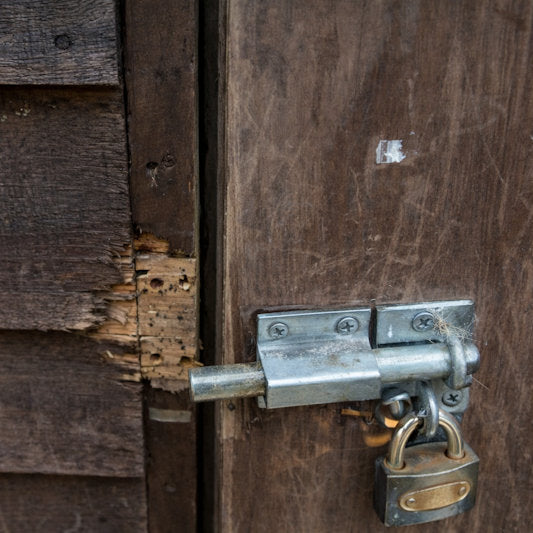

A thief can simply use a crowbar, a screwdriver, or even the spade you left leaning against the side of the shed, to lever the hinges or the hasp or the staple away from the wood. You may have a good quality hasp & staple and a good padlock, but if they or the hinges are only fitted with wood screws, your property is not protected.

This problem is easy to solve!

The Beef-Up Kit provides a selection of top-quality fixings to help you replace some of the wood screws with coach bolts. If you have a coach bolt securing each side of each hinge, and coach bolts/machine screws securing each side of the hasp & staple, with a nut on the inside of the shed in each case, the fittings can no longer be easily torn from the wood. The thief no longer has an easy way into your shed.

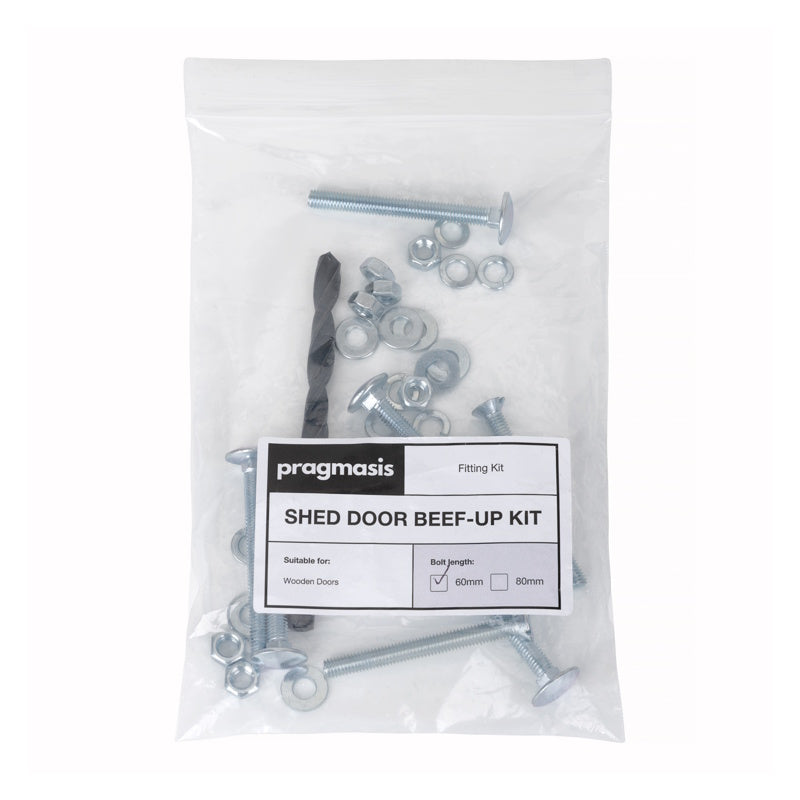

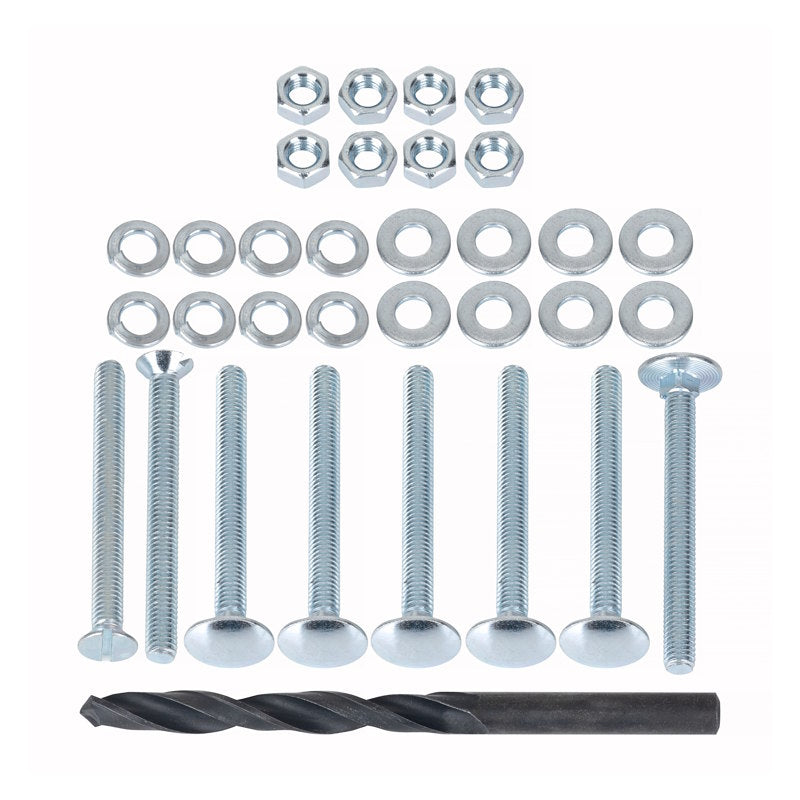

The Beef-Up Kit contains the following:

• M6 x 60mm long coach bolts, fully threaded, zinc plated (qty. 6)
• M6 x 60mm countersunk head machine screws, fully threaded, zinc plated (qty. 2) (Note: These screws have a slot head, so they must be protected by the hasp or staple when locked, in order to be secure.)
• M6 nuts, zinc plated (qty. 8)
• M6 spring washers, zinc plated (qty. 8)
• M6 flat washers, zinc plated (qty. 8)
• 8.0mm HSS drill bit
• Fitting instructions and guidance

Typical Installations

Below are some example applications of the fittings supplied in the Beef-Up Kit:

In the top-left image, you can see an example shed door hinge where some of the wood screws have been replaced with coach bolts. This is the kind of thing you should have if you want your shed to be secure.

The top-right image shows the inside view of one of the coach bolts. (The inside end of a machine screw would look the same.) The nut can't be readily pulled through the wood. It doesn't particularly need to be tight. Providing it is there, your security is much improved!

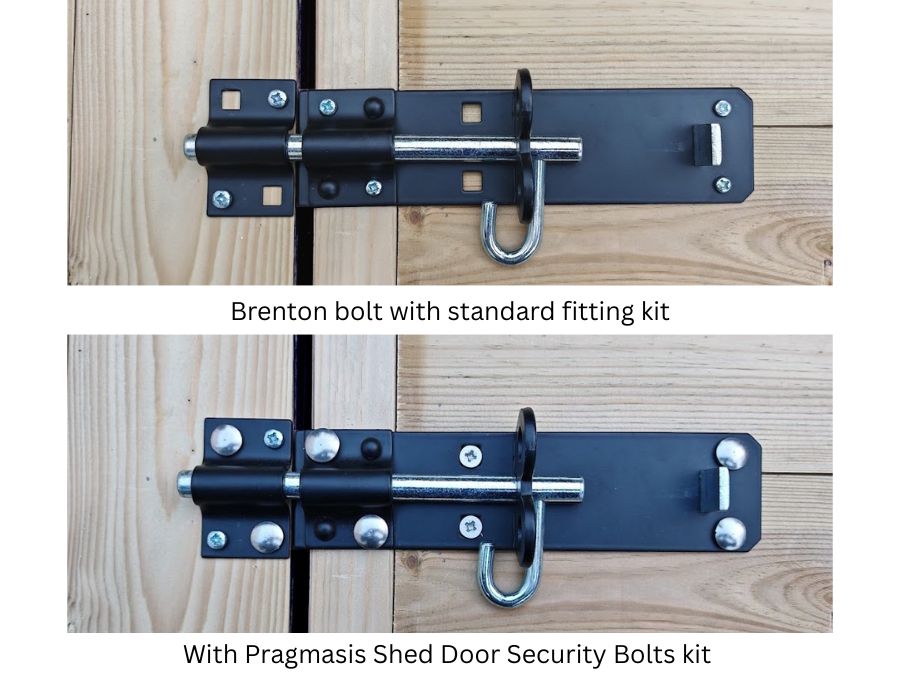

The bottom image shows a hasp and staple with a coach bolt securing each side. The item was originally fitted with anti-tamper wood screws, which illustrates a common misconception that they really make much difference - they don't! The thief doesn't need to unscrew them as it is easier and often faster to pull them out of the wood with a crowbar! It is the coach bolt on each side that is providing the security here, now, and not the anti-tamper wood screws - they just hold the thing straight! The more coach bolts you fit, the more secure it is.
